Details

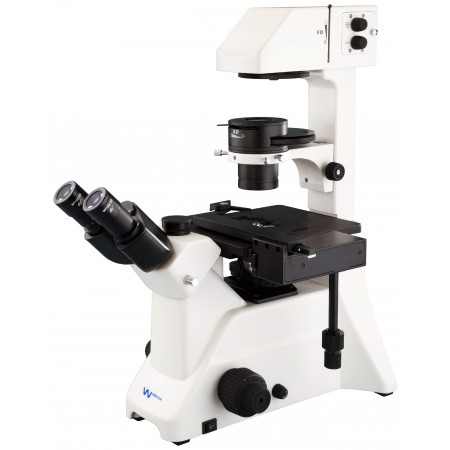

Our AI508PH inverted microscope offers versatility at a great price for the college, university or clinical user. Ideal for routine viewing of cell cultures, it comes standard with high quality PLAN phase contrast objectives for exceptional image quality. The trinocular port can be equipped with a variety of digital cameras for photo and video documentation and image analysis. Comes with a 5-year limited warranty.
| Body | Cast aluminum with enamel finish, slim, compact design |
| Head |
Siedentoph trinocular head, 45° inclined, selectable light distribution: 100/0 or 20/80 (binocular/camera port), 1X c-mount |
| Eyepiece | (2) 10X WF/20mm, (2) 16X WF/13mm, (2) 10X WF with 0.1mm reticle, (1) centering piece |
| LWD Plan Objectives |
LPL 10X, 25X, 40X |
| Plan Phase Contrast Objectives | LPL Ph+ 10X, 25X, 40X |
| Stage | 206mm X 170mm built-in mechanical stage, cross travel motion of 128mm X 80mm, suitable for 96-hole plate |
| Condenser | Turnable relief phase contrast slider with 0.35 N.A. condenser |
| Working Distance | 45mm |
| Focusing System |
Low position, coaxial coarse and fine focusing knobs |
| Filter | Blue, green, gray, ground glass |
| Illumination | Köhler illumination, 6V/20W halogen |
| Power | 3-wire ground power cord |
| Accessories | 35mm & 65mm culture dish holder, vinyl dust cover and user manual |
| Warranty | Limited 5 year |
