Details

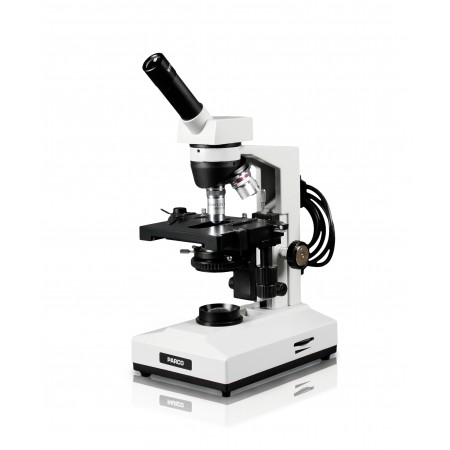

The Parco LTM series features a 4-position reverse nosepiece with 4X, 10X, 40XR, and 100XR color-coded DIN achromatic objectives which are parfocaled and parcentered for superior image quality. The 360° rotating head is inclined at 45° and has a locked on 10X wide-field eyepiece with calibrated pointer. Each model comes with a built in mechanical stage and has a rack and pinion adjustable 1.25 N.A. Abbe condenser and iris diaphragm. The base of the instrument is ruggedly constructed to avoid tip overs and the coatings can stand up to acid and chemical reagents. Packed in a fitted styrofoam box and includes a dust cover and an instruction manual. 5-year limited warranty excluding bulbs.
| ITEM NO. | HEAD | DIN OBJECTIVES |
ILLUMINATION | PRICE |
| LTM-402-LED | Monocular | 4X, 10X, 40XR, 100XR | LED Corded | $259.00 |
| LTM-402-RC | Monocular | 4X, 10X, 40XR, 100XR | LED Cordless | $269.00 |
| LTM-403-LED | 90º Video | 4X, 10X, 40XR, 100XR | LED Corded |
$274.00 |
| LTM-403-RC | 90º Video | 4X, 10X, 40XR, 100XR | LED Cordless | $284.00 |
| LTM-404-LED | 45º Dual View | 4X, 10X, 40XR, 100XR | LED Corded |
$274.00 |
| LTM-404-RC | 45º Dual View | 4X, 10X, 40XR, 100XR | LED Cordless | $284.00 |
| Model | LTM-402-LED | LTM-402-RC | LTM-403-LED | LTM-403-RC | LTM-404-LED | LTM-404-RC |
| Body | Rugged cast metal stand with stain resistant finish, cord holder on arm | |||||
| Head |
Monocular, 45° inclined, 360° rotatable | 90° Video, 45° inclined, 360° rotatable | 45° Dual View, 45° inclined, 360° rotatable | |||
| Eyepiece | Locked-on 10X wide-field eyepiece with calibrated pointer | |||||
| Nosepiece | Four position reversed nosepiece with positive stop clicks | |||||
| Objectives | 4X, 10X, 40XR, 100XR DIN achromatic objectives are color-coded, parfocaled and parcentered | |||||
| Stage | 115mm x 120mm stage, built-in double layer mechanical stage with smooth X-Y travel and 0.01mm increments | |||||
| Condenser | Focusable 1.25 N.A. Abbe condenser | |||||
| Diaphragm | Iris diaphragm with optically clear plastic cover | |||||
| Focusing System |
Separate coarse and fine focus control, rack and pinion focusing system, safety rack stop | |||||
| Illumination | LED illumination with light intensity control | |||||
| Power | 3-wire grounded power cord | NiMH batteries or AC adapter | 3-wire grounded power cord | NiMH batteries or AC adapter | 3-wire grounded power cord | NiMH batteries or AC adapter |
| Accessories | Vinyl dust cover and user manual | |||||
| Warranty | Limited 5 year | |||||
