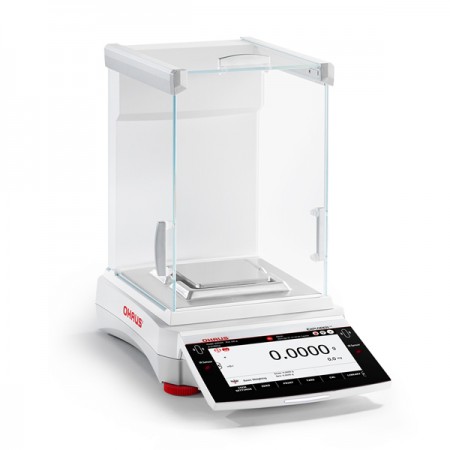

The new Explorer (EXR series) offers an intuitive interface, outstanding weighing performance, and an environmentally friendly design. The new generation Explorer establishes a groundbreaking standard for laboratory operations.
| ITEM NO. | CAPACITY | READABILITY | UOM | PRICE |
| EXR124 | 120g | 0.1mg | Each | $5,178.20 |
| EXR224 | 220g | 0.1mg | Each | $5,746.00 |
| EXR324 | 320g | 0.1mg | Each | $6,747.30 |
| Model | EXR124 | EXR224 | EXR324 |
| Capacity | 120g | 220g | 320g |
| Readability d |
0.1mg | ||
| Repeatability (sd.) ≤5% of Full Load Typical |
0.05mg | ||
| Repeatability (sd.) 5% of Full Load to Full Range | 0.1mg | ||
| Linearity Deviation Typical | 0.06mg | ||
| Linearity Deviation | 0.2mg | ||
| Span Calibration Points | 25g, 50g, 75g, 100g | 50g, 100g, 150g, 200g | 100g, 150g, 200g, 300g |
| Weighing Units |
g, mg, ct, N, oz, ozt, Grain, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, Custom 1, Custom 2 | ||
| Application Modes | Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold | ||
| Stabilization Time (typical) | 2 sec | ||
| Sensitivity Temperature Drift |
1.5ppm/°C | ||
| Min-Weight (typical) (K=2, U=1%) |
10mg | ||
| Min-Weight (typical) (USP, K=2, U=0.10%) |
100mg | ||
| Min-Weight (optimal) (USP, K=2, U=0.10%, SRP≤0.41d) |
82mg | ||
| Terminal Display | 7-inch TFT 16.7M Color Touch Screen with Glass Overlay | ||
| Display Resolution |
800 x 480 Pixels | ||
| Communication System | USB Host (Type A) x 2, USB Device (Type C) x 1 Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle | ||
| Leveling System | 2 Leveling Feet with Digital Leveling Bubble | ||
| Power Supply | AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A | ||
| Weighing Pan Size | Square Pan 3.5" x 3.5" / 90mm x 90mm | ||
| Touchless Sensor | 2 Touchless Sensors on the termina | ||
| Draftshield w/Anti-Static Coating | Standard | ||
| Terminal Status Lights | Standard, 7-color Selectable | ||
| Assembled Dimensions | 9" × 15.4" × 14.6" / 230mm x 393mm x 370mm | ||
| Net Weight | 16.3lb / 7.4kg | ||
