Details

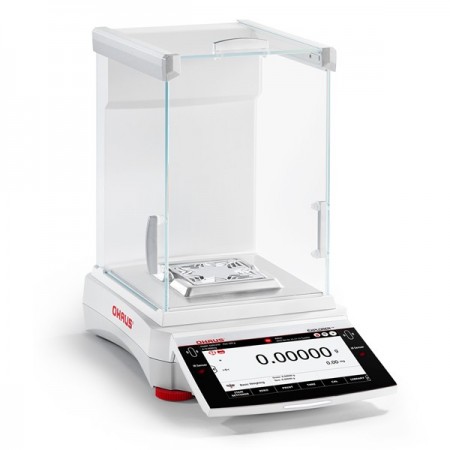

The new Explorer EXR series offers an intuitive interface, outstanding weighing performance, and an environmentally friendly design. The new generation Explorer establishes a groundbreaking standard for laboratory operations.
| ITEM NO. | CAPACITY | READABILITY | UOM | PRICE |
| EXR125D | 82g; 120g | 0.01mg; 0.1mg | Each | $ 6,817.85 |
| EXR125 | 120g | 0.01mg | Each | $ 8,093.70 |
| EXR225D | 120g; 220g | 0.01mg; 0.1mg | Each | $ 8,231.40 |
| EXR225 | 220g | 0.01mg | Each | $10,107.35 |
| Model | EXR125D | EXR125 | EXR225D | EXR225 |
| Capacity | 82g / 120g | 120g | 120g / 220g | 220g |
| Readability d, Fine Range |
0.01mg | 0.01mg | 0.01mg | 0.01mg |
| Readability d, Full Range | 0.1mg | 0.01mg | 0.1mg | 0.01mg |
| Repeatability (sd), ≤5% of Full Load Typical | 0.01mg | |||
| Repeatability (sd), 5% of Full Load to Fine Range Max | 0.02mg | |||
| Repeatability (sd), Fine Range Max to Full Range |
0.1mg | 0.02mg | 0.1mg | 0.02mg |
| Linearity Deviation Typical |
0.06mg | |||
| Linearity Deviation | 0.2mg | 0.1mg | 0.2mg | 0.1mg |
| Span Calibration Points | 25g, 50g, 75g, 100g | 50g, 100g, 150g, 200g | ||
| Weighing Units |
g, mg, ct, N, oz, ozt, Grain, dwt, mo, msg, tcl, tola, baht, Custom 1, Custom 2 | |||
| Application Modes | Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold | |||
| Stabilization Time (typical) | 0.1mg: ≤2 second; 0.01mg: ≤5 second | |||
| Sensitivity Temperature Drift |
0.8ppm/°C | |||
| Min-Weight (typical) (K=2, U=1%) |
2mg | |||
| Min-Weight (typical) (USP, K=2, U=0.10%) |
20mg | |||
| Min-Weight (optimal) (USP, K=2, U=0.10%, SRP≤0.41d) |
8.2mg | |||
| Terminal Display |
7-inch TFT 16.7M Color Touch Screen with Glass Overlay | |||
| Display Resolution |
800 x 480 Pixels | |||
| Communication | USB Host (Type A) x 2, USB Device (Type B) x 1, USB Device (Type C) x 1 Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle | |||
| Leveling System | 2 Leveling Feet with Digital Leveling Bubble | |||
| Power Supply | AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A | |||
| Weighing Pan Size |
Aero Pan 80mm x 80mm | |||
| Touchless Sensor | 2 Touchless Sensors on the terminal | |||
| Draftshield w/Anti-Static Coating | Standard | |||
| Terminal Status Lights | Standard, 7-color Selectable | |||
| Assembled Dimensions | 9.1" x 15.5" x 14.6" / 230mm x 393mm x 370mm | |||
| Net Weight | 16.3lbs / 7.4kg | |||
